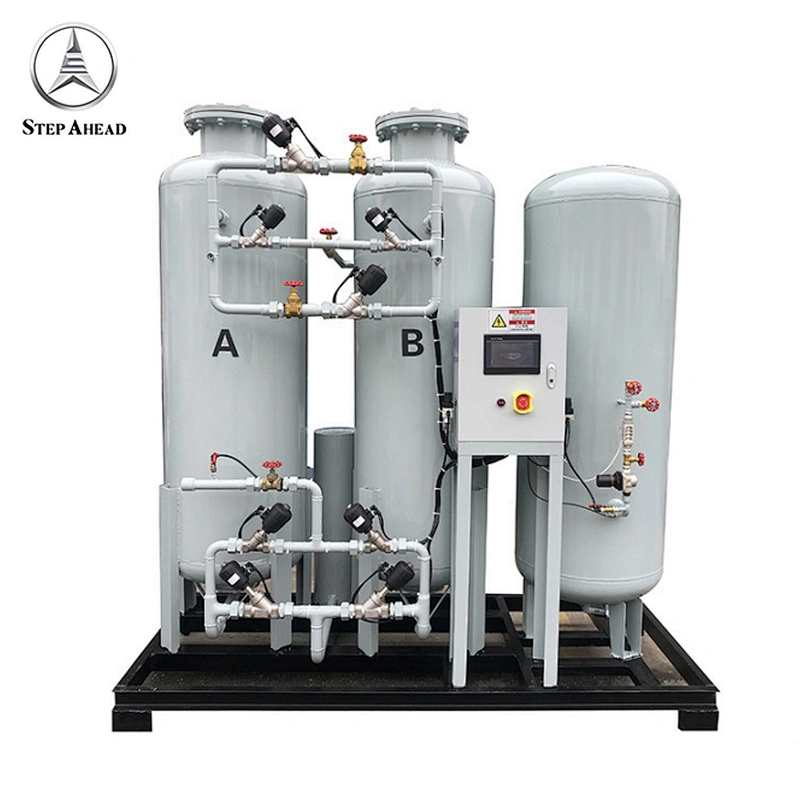

Medical and industrial use high purity oxygen nitrogen gas making psa system with factory price
Remarks:
1.This quotation includes domestic logistic cost .
2. Delivery of equipment is within 40 days of advance payment.
3. The main components of the device (e.g. molecular sieve, pneumatic corner valve) shall be used for more than 3 years and any problems during this period shall be borne by us. Oxygen production equipment quality guarantee period from the user factory commissioning qualified for 12 months.
4.Terms of payment :50% advance payment after the contract comes into effect ,50% payment before delivery
5. Incoming power of equipment :3Φ380V/50HZ
6. This offer is valid until 30 Sep 2021.
| *Service life | 15-20 years |
| *Degree of automation | automatic unattended |
| *Dew point | ≤ - 45 ℃ dew point under pressure |
| *Outlet pressure | 0.3mpa-0.4mpa (pressurization required above) |
| *Compressed air intake flow | air consumption ratio 1:13 (energy saving) |
| *The valve of oxygen generation system is Wuxi Yiren; | |
| *Siemens S7-200 is selected as PLC | |
| *Free spare parts within one year | three stage filter (C / T / a), activated carbon filter (H) |
| *The communication interface of PLC (RS485) is reserved to communicate with the buyer's upper computer. The air compressor and the main machine are equipped with remote control function to realize remote start-up and stop (please explain in advance if necessary). | |
| *PLC and display | Siemens, Germany |
| *Explosion proof grade of electric control system | non explosion proof system |
| *Spare parts | filter element of the whole PSA system |
Remarks:
1.This quotation includes domestic logistic cost .
2. Delivery of equipment is within 40 days of advance payment.
3. The main components of the device (e.g. molecular sieve, pneumatic corner valve) shall be used for more than 3 years and any problems during this period shall be borne by us. Oxygen production equipment quality guarantee period from the user factory commissioning qualified for 12 months.
4.Terms of payment :50% advance payment after the contract comes into effect ,50% payment before delivery
5. Incoming power of equipment :3Φ380V/50HZ
6. This offer is valid until 30 Sep 2021.
Power supply voltage/energy consumption
| Electrical equipment | AC | Single Device Installed Power (KW) | ||
| Voltage (V) | mutually | Frequency (Hz) | ||
| ScrewAir Compressor | 380 | 3 | 50 | 75 |
| Freeze dryer | 380 | 3 | 50 | 3 |
| PSAOxygen Production Unit | 220 | 2 | 50 | 0.3 |
| Supercharger | 380 | 3 | 50 | 22 |
| Total equipment power | 100.3KW | |||
Other Product Attributes
| Serial number | name | parameter | number | |

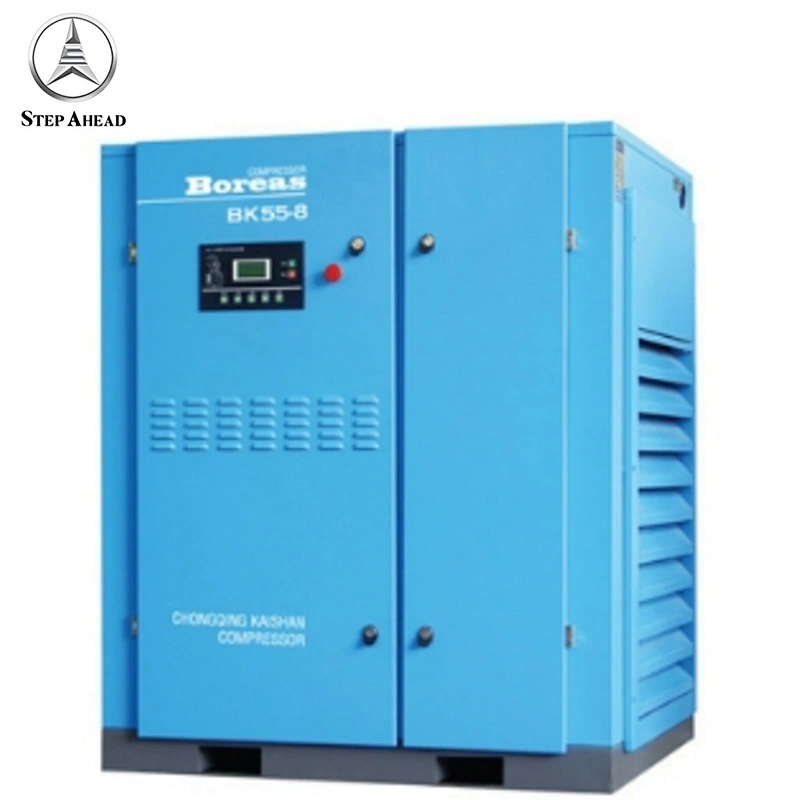

| 1 | Energy saving screw air compressor | Exhaust pressure (Mpa) | 0.8 | 1 unit |
| Brand: Shanghai Jianpa | Exhaust (m³/min) | 13.3m³/ min | ||
| Model:JP-100A | cooling-down method | Air cooling | ||
| Motor power (kw) | 75 | |||
| Electricity(V/PH/HZ) | 3 phase 415 V/60Hz | |||
| Size(mm) | 1650*1350*1500 | |||
| Unit weight (kg) | 2700 | |||
| 2 | Level 1 air tank | Volume | 1.0m³ | 1 unit |
| Brand: Puyang Red | Working pressure | 0.80 MPa | ||
| Model: C-1.0/8 | Size | Φ2325*800*800m | ||
| Unit weight (kg) | 260 | |||

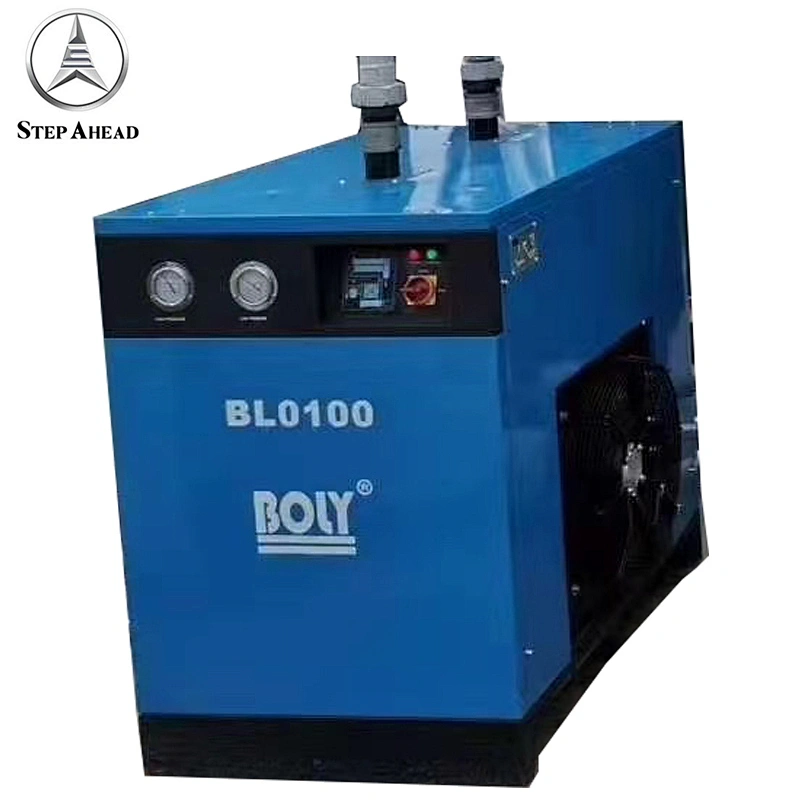

| 3 | Freeze dryer | Gas treated | 16m³/min | 1 unit |
| Brand: Bo Li, Guangzhou | Pressure dew point | 2—10℃ | ||
| Model: BL0150W | Motor power (kw) | 3.0 | ||
| Power | 380V/50Hz | |||
| Size(mm) | 700*1000*1000 | |||
| Unit weight (kg) | 165Kg | |||

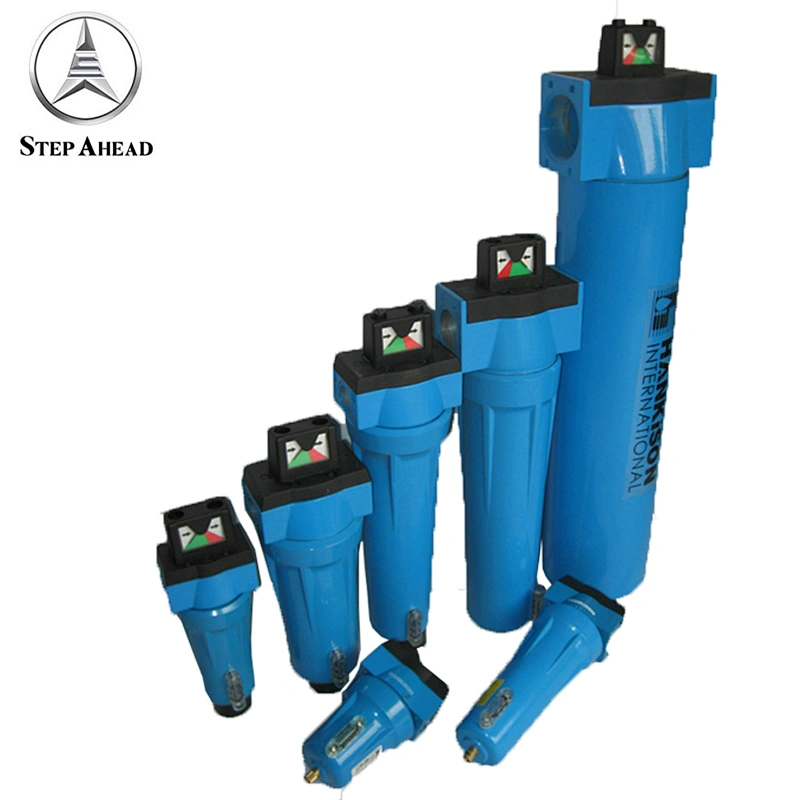

| 4 | High Efficiency Filter Level 4(C/T/A/H) | Gas treated | 16m³/min | 4 |
| Brand: No Tin Benefit | Oil removal accuracy | 0.1ppm | ||
| Model: XF9-44 | Dust removal accuracy | 0.1μm | ||
| Discharge mode | Mechanical Automatic Discharge | |||
| 5 | Stainless Steel Dust Filter | Gas treated | 16m³/min | 1 |
| Brand: No Tin Benefit | Oil removal accuracy | 0.1ppm | ||
| Model: XF9-44 | Dust removal accuracy | 0.1μm | ||
| Discharge mode | Mechanical Automatic Discharge | |||
| 6 | Sterless steel sterilization filter | Gas treated | 16³/min | 1 |
| Brand: Wuxi Energy | Oil removal accuracy | 0.1ppm | ||
| Model number: XF9-44 | Dust removal accuracy | 0.1μm | ||
| Sterless steel sterilization filter | Discharge mode | Mechanical Automatic Discharge | ||
| 7 | Secondary Buffer Tank | Volume | 1.0m³ | 1 unit |
| Brand: Puyang Red | Working pressure | 0.80 MPa | ||
| Model: C-1.0/8 | Size(mm) | Φ2325*800*800m | ||
| Unit weight (kg) | 260 | |||

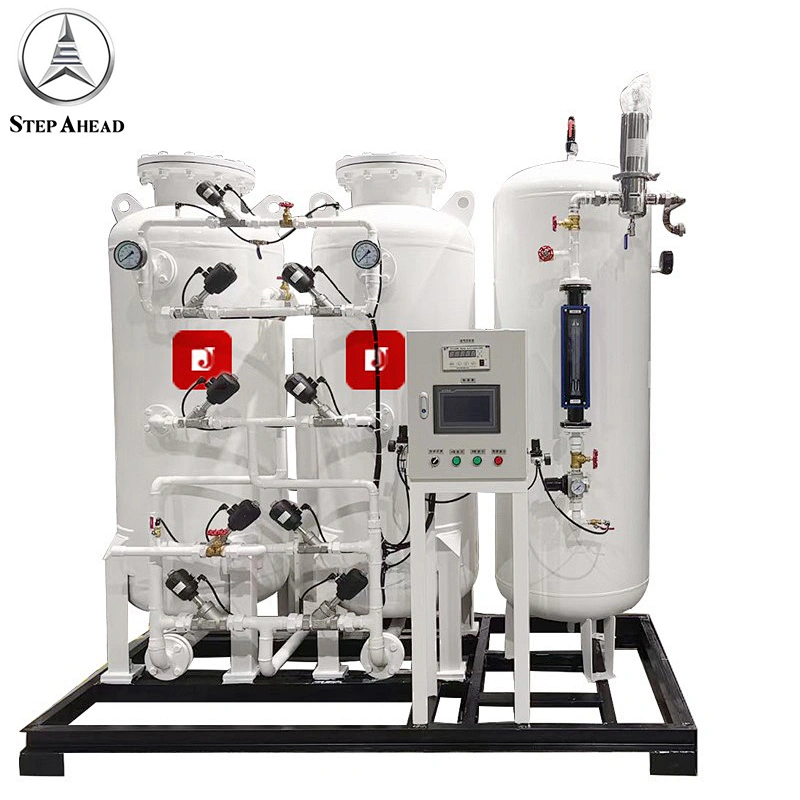

| 8 | Oxygen flow | 50Nm³/h | 1 unit | |
| Brand: DeJing | Oxygen purity | 93%±2 | ||
| Model number: DJOG-50/93 | Oxygen dew point | ≤-45℃(atmospheric pressure) | ||
| PLC and Display: Siemens, Germany | Export pressure | ≤0.3 MPa( adjustable) | ||
| Motor power (kw) | 0.3 | |||
| Power supply: 2 Φ220V/50Hz | Unit weight (kg) | 1700 | ||
| *Reserved PLC communication interface (RS485), communication with buyer upper computer,air compressor and main engine with remote control function,can achieve remote start and stop (if necessary, please explain in advance). | ||||
| *Automation: automatic venting of unqualified gas (please explain in advance), fully unattended | ||||
| Explosion - proof grade of electric control system is: non - explosion - proof | ||||
| Energy - saving PSA oxygen - making machine main machine | ||||
| 9 | Oxygen gas storage tank | Volume | 1.0m³ | 1 unit |
| Brand: Puyang Red | Working pressure | 0.80MPa | ||
| Model: C-1.0/8 | Size(mm) | Φ2325*800*800m | ||
| Unit weight (kg) | 260 | |||

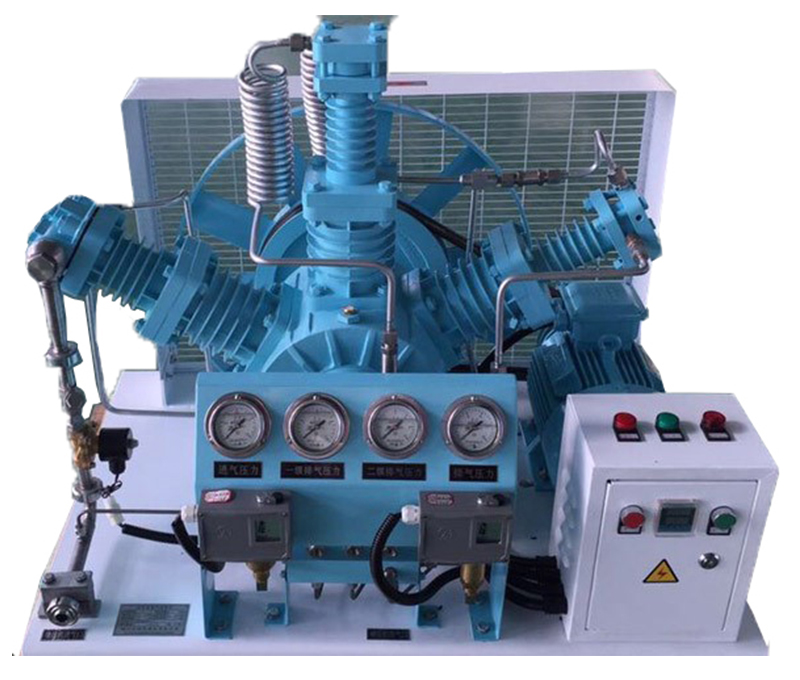

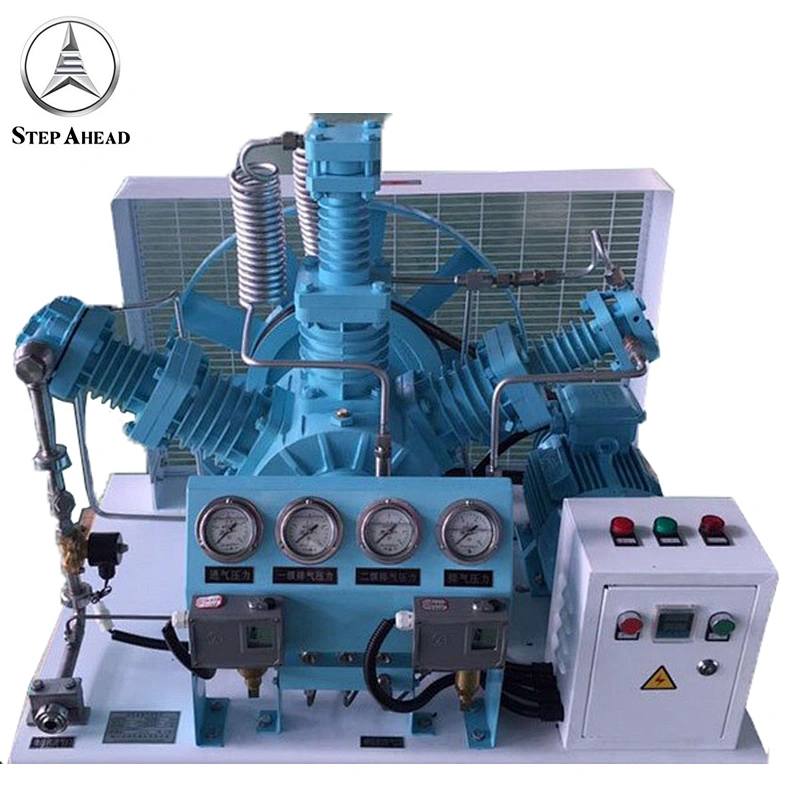

| 10 | Supercharger | Power supply voltage | Three - phase, 380V/50Hz | 1 unit |
| Brand: Anshan Libang | Rated Flow | 50Nm³/h | ||
| Model: WWZ-50/4-150 | Rated intake pressure | 0.3MPa | ||
| Supercharger | Rated exhaust pressure | 15MPa | ||
| Motor power (kw) | 22 | |||
| Dimensions (mm) | 1800*1100*1200 | |||
| Unit weight (kg) | 600 | |||

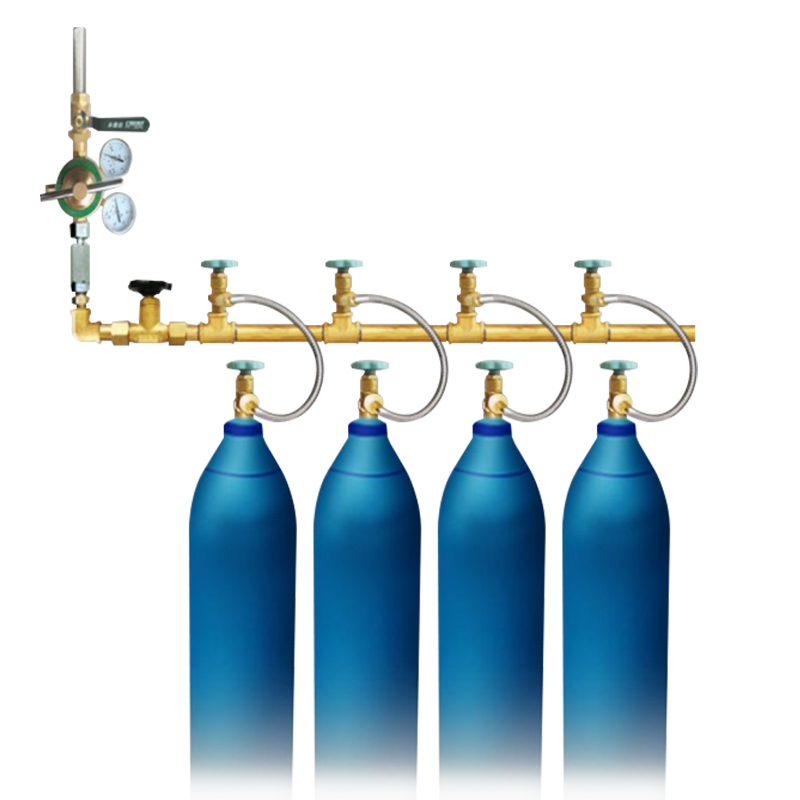

| 11 | Bus | Number of interfaces | 5 | 1 Set |
| Brand: Dejing Matching | Material | Brass | ||
| Model: K-5 | Pressure range | 15 Mpa | ||
| Total price: | EXW USD59300 | |||
