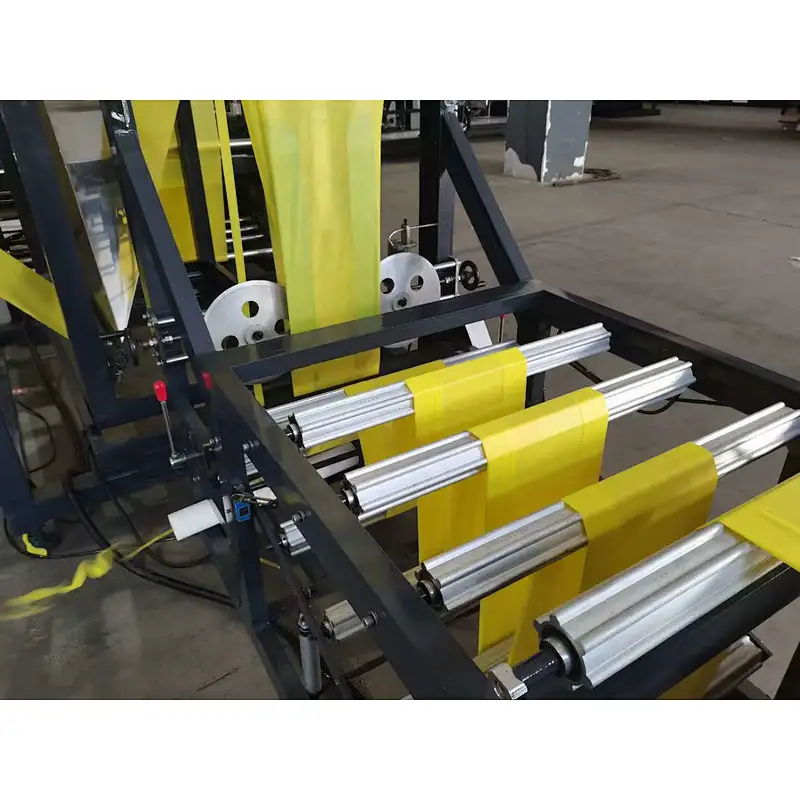

Non Woven PLC 120pcs/mins T Shirt Bag Machine for supermarket
Product Description

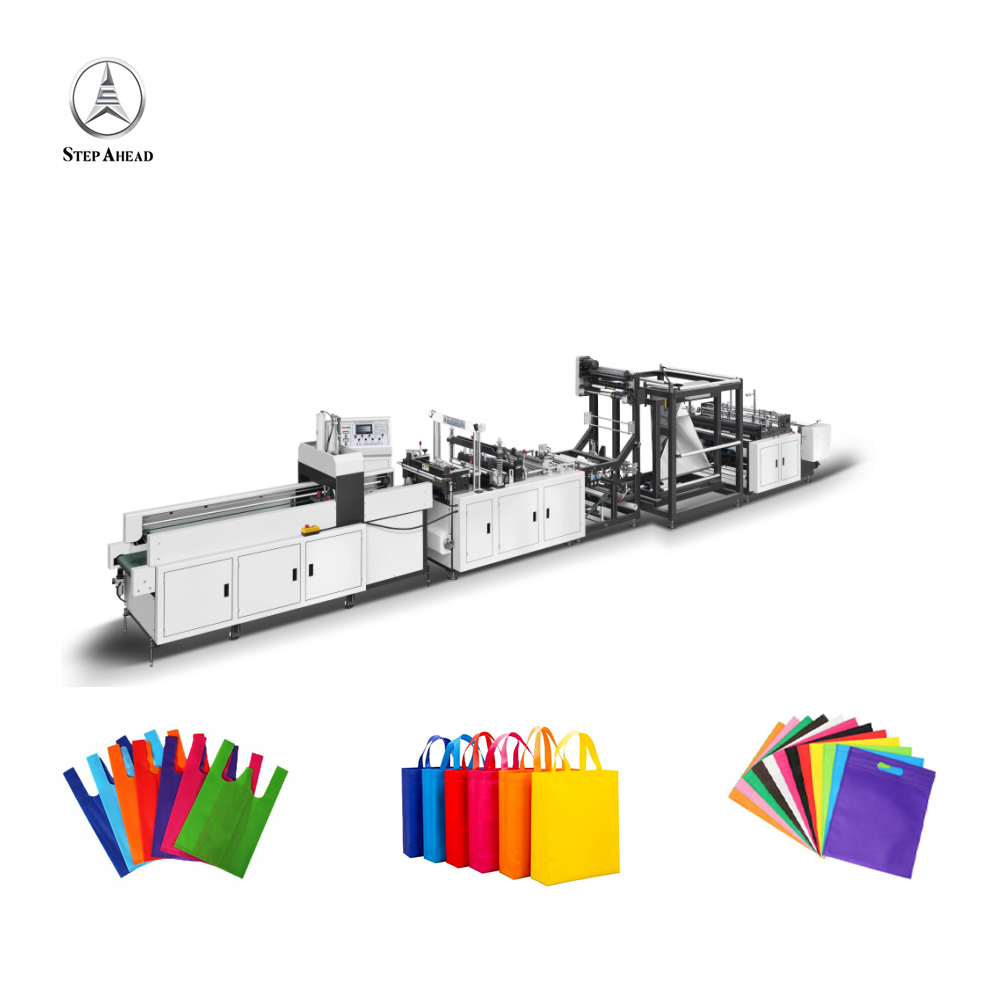

ZBX-A700 fully automatic multi-function non-woven bag making machine is our company according to the latest international environmental protection concept, depth design, independent research and development. Should the valuable requirements of customers at home and abroad, to improve the new generation, the successful listing of the latest generation of full automatic multifunctional non-woven bag machine, a machine with light, electricity, gas, composed of three and integrated design of the structure, the equipment adopts high-performance PLC touch type high-performance machine control system, the system of the company developed non-woven bag machine professional industrial despotism. This equipment is advanced in technology, stable in operation performance and fast in bag making. It is one of the most advanced non-woven bags making machines in the world.
Specification
| Product name | Non Woven PLC 120pcs/mins T Shirt Bag Machine |
| Power supply | 220 v 15kw |
| Product Speed | 20-120pcs/mins |
| Machine Weight | 2800kg |
| Machine Dimension | 11000X1900X2100mm(LX W X H) |
| Product size | 550-1250 mm(w) |
| Cetification | CE |
| Pass rate | 98% |
Enviromental requirement | 10-35C general dust-free workshop Humidity 5-38% HR, non-condensing |
Warrenty | 1 year |
| Logo | Customize Logo Available |
| Lead time | 7-15days |

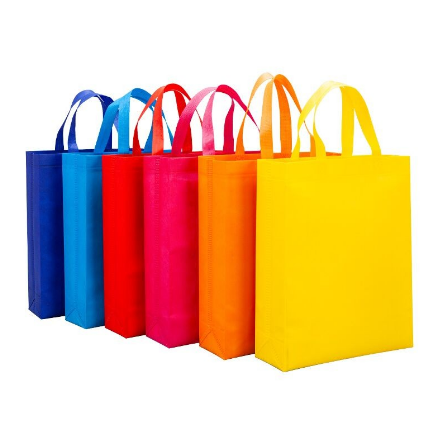

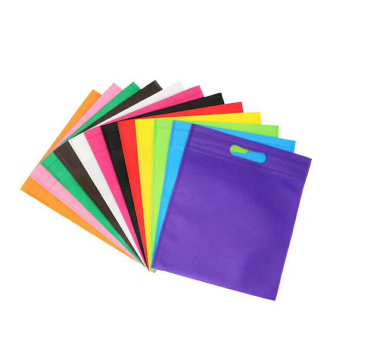

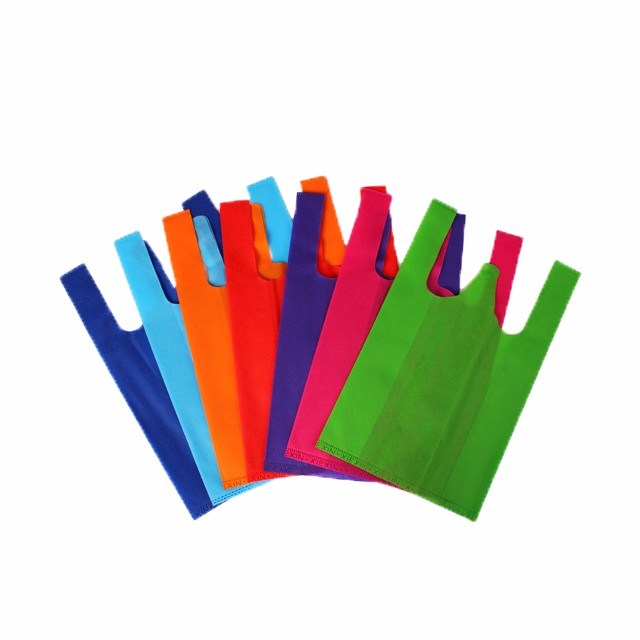

| Final Product | Eco-friendly shopping bag |
| Worker number | 2 |
Process flow:
Roll Material - Side Folding - Heat -Cross Folding - Insert - Position - Punch - Heat - Cut - Collect the Finished Product - Automatically Press into Vest Bags

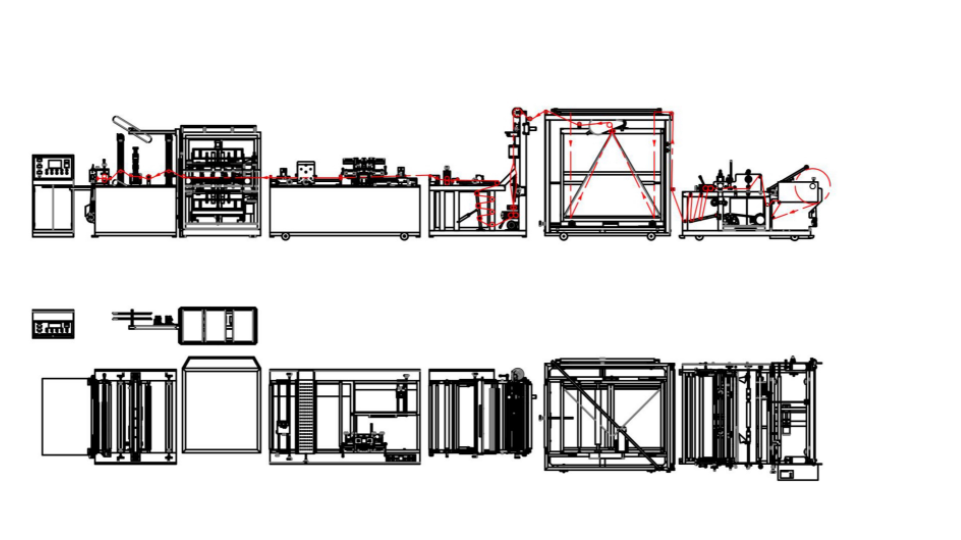

Machine construction

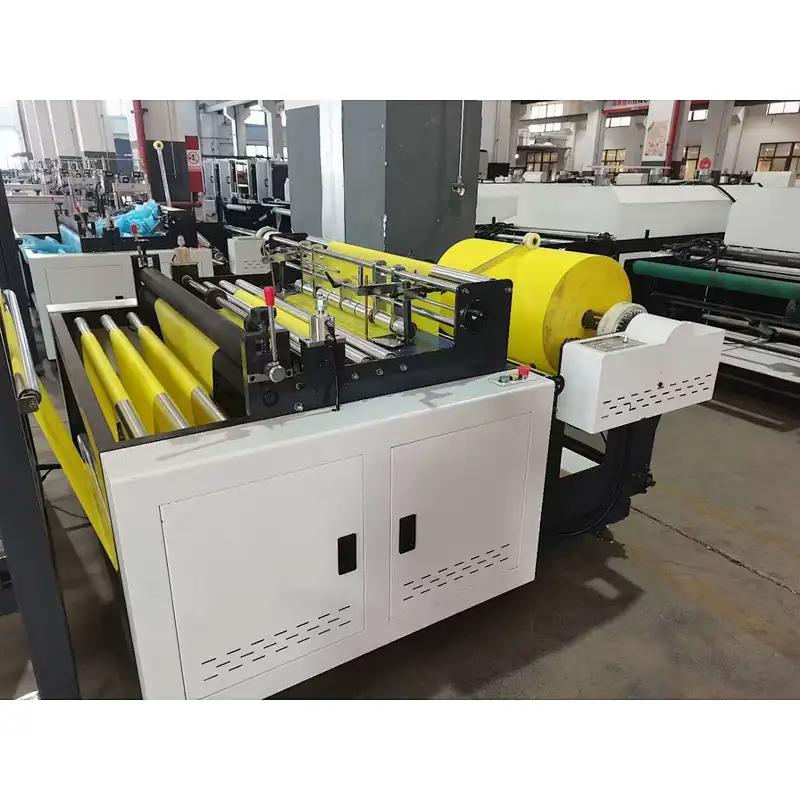

Feeding Part
The maximum unwinding diameter of this machine is 1 meter.
Adopt automatic feeding, automatic tension, automatic photoelectric rectification, no stop machine and other industrial control devices.
Ultrasonic folding device: hand wheel, screw rod adjustment, ultrasonic welding.
The maximum diameter of the roll is 1 meter.
Main motor 1.5 KW
Fabric Cross Folding
The cloth is folded in half, the solid triangle steel frame, the non-woven cloth bag folded function, the adjustment is convenient, the whole equipment does not move the situation, also may straighten the material.
Vest Bag Insert Part
70mm one set zhejiang zhengxin ultrasonic for side sealing
Disk insert
It is suitable for flat bottom pocket, vest bag inserting edge, step motor to pull that long

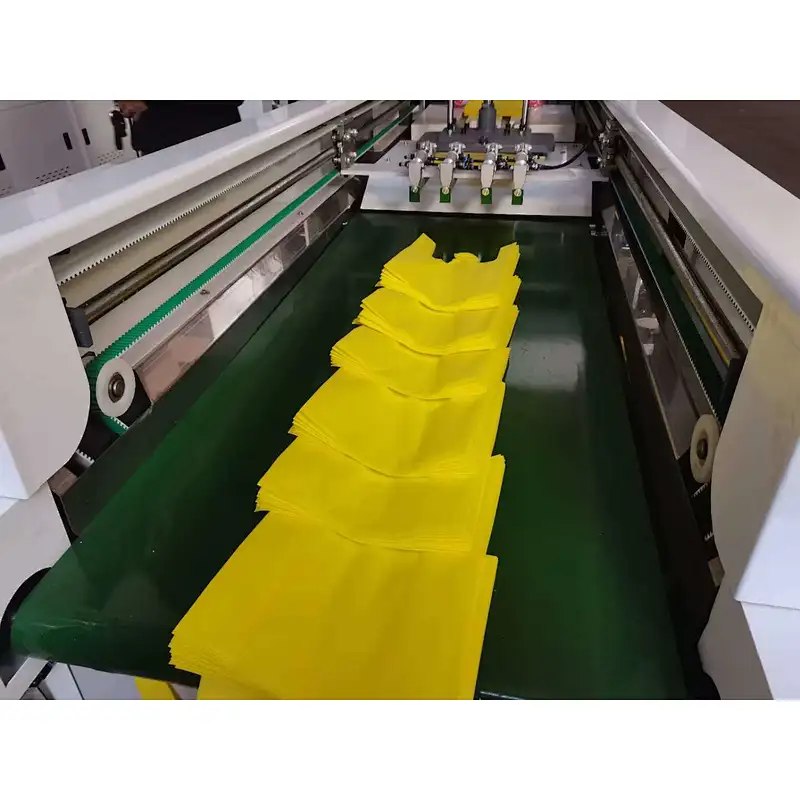

Machine Head Collecting Bag
Color tracking: high precision color mark recognition, zero error.
Material shortage stop device: when the material or cloth is not pulled to the bag making part, the machine will stop automatically. The ultrasonic air pressure is avoided, and the damage to the ultrasonic wave and the waste of cloth are reduced.
Stepping feeding device: stepping motor to adjust the cloth parallel to the mold, to control the opening of the mouth.
Ultrasonic device: stepping motor with cam drive, high speed mute, smooth movement, high speed wear resistance.
Using 2 sets of Taiwan ultrasonic welding device (welding travel 300MM) edge solid appearance, also can choose different configurations of the independent brand zhengxin ultrasonic according to the requirements of edge.
Automatic Punching Part
Clamping bag, mould stamping into vest ba
Distribution Box
Operation panel: touch screen operation interface, humanized design, simple and easy to learn. The split structure of all automation control components together with PLC and touch screen man-machine interface device, convenient operation and maintenance.
The Machine Configuration:
| Feeding device | 1set |
| Folding and traction device | 1set |
| Vertical folding device | 1set |
Product Packing

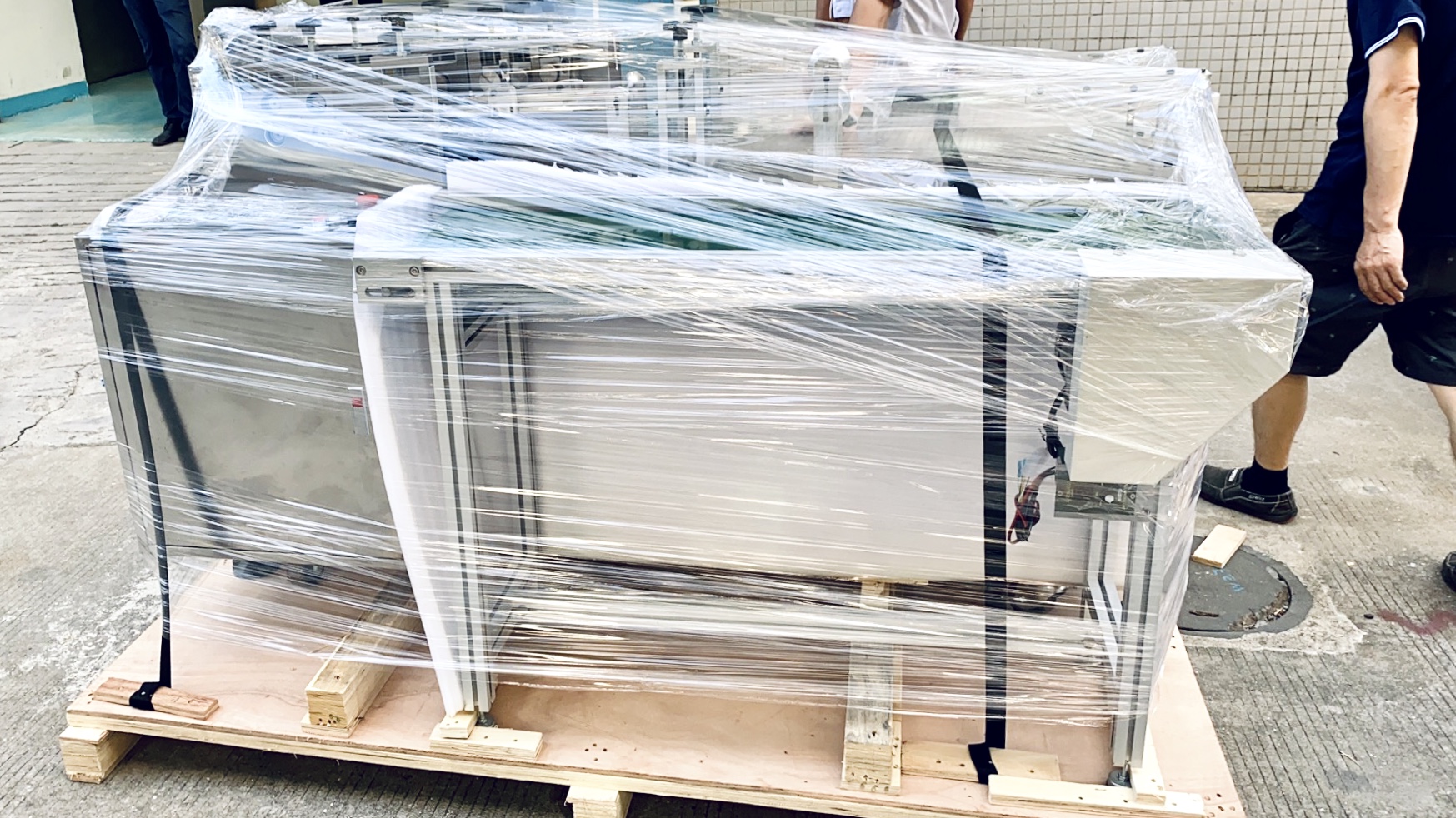

Machine will packed with plastic warp and cover with Wood box case.
logistic service
Logistic service is available in railway, sea cargo and air freight, to deliver the product to your destination in time and security. We have cooperated with many reliable third-party logistic service companies. We can provide customized logistic service, according to your equirment.
FAQ
Installation service
Due to the pandemic and the travel restriction of a different country, the filed installation service is not available now, but we will provide video and online install support.
The warranty time
A one-year warranty will be provided.
After-service within warranty.
For after-sales service, we will be provided: Video installation support, commissioning and training, free spare parts, and online support, video technical support
Machine labour require
For the auto shoe cover machine, the general needs at least one worker for one set of machines. The worker’s job is to refill in the raw materials, monitor the machine operation situation and pick up the final product.
