1+1 Flat 3ply Mask Machine Regular

Model NO.: P000000001
Price:: US $ 17000.00-23000.00 / set
Minimum order quantity: 1 set
Supply Ability: 3 set / Day
Country of Origin: Shenzhen, China
Stock Time: 7-15days Days

Quantity:

Product Description

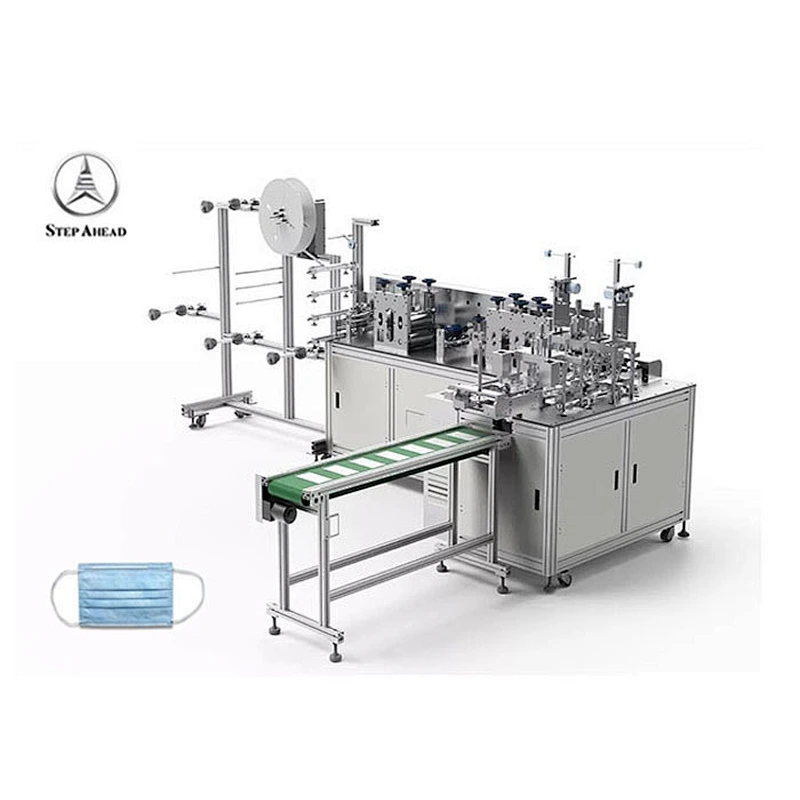

Introduction of Automatic mask making machine

Mask production line can completely realize flat type mask automatic productivity, including technologies such as coil stock, folding and pressing, mask moulding, cutting, earloop loading and welding, finished products laying-off and so on, to finish the production process from coil row material to finished masks. The masks making by our machine are comfortable, no pressure, good filtration effect, and perfectly attach to face. The masks can be applied to the medical industry, electron industry, mining industry, construction industry and so on.

How is this machine automatically making the disposable flat masks?

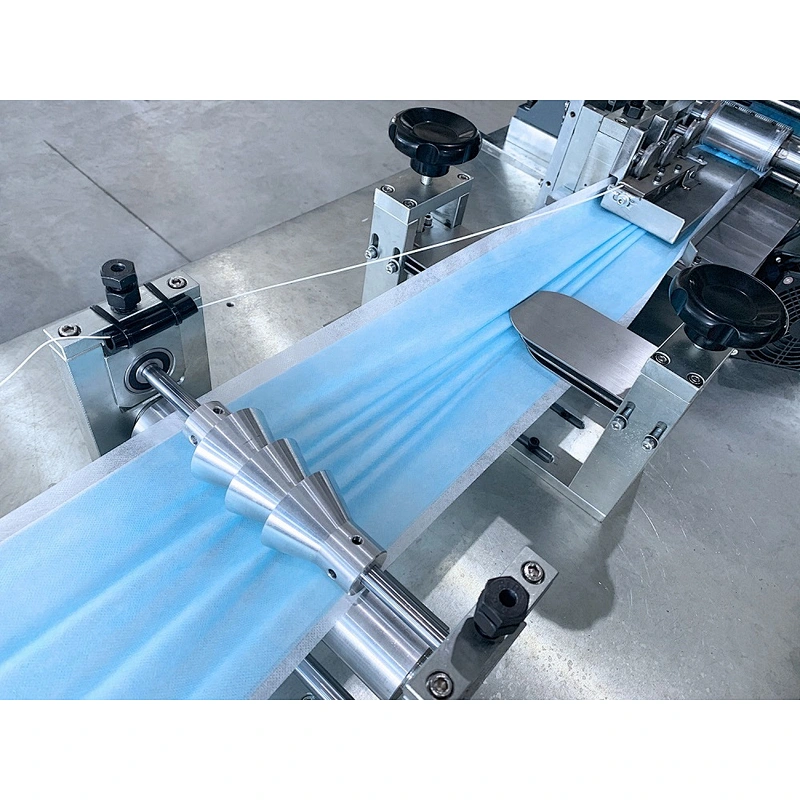

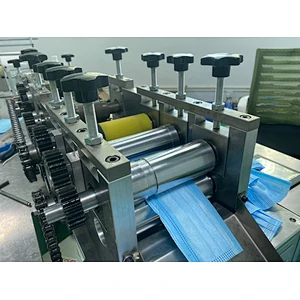

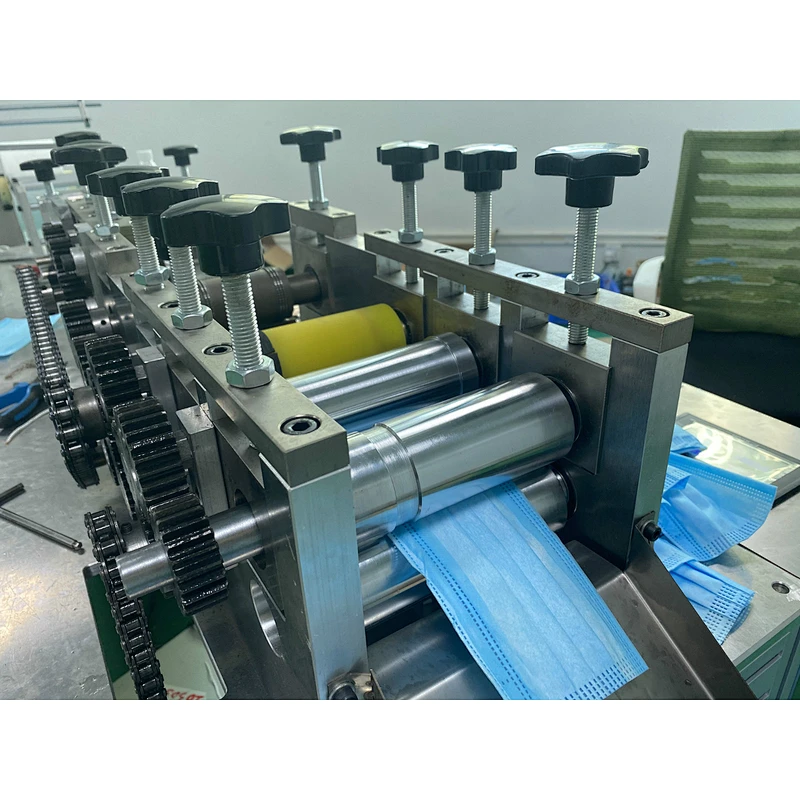

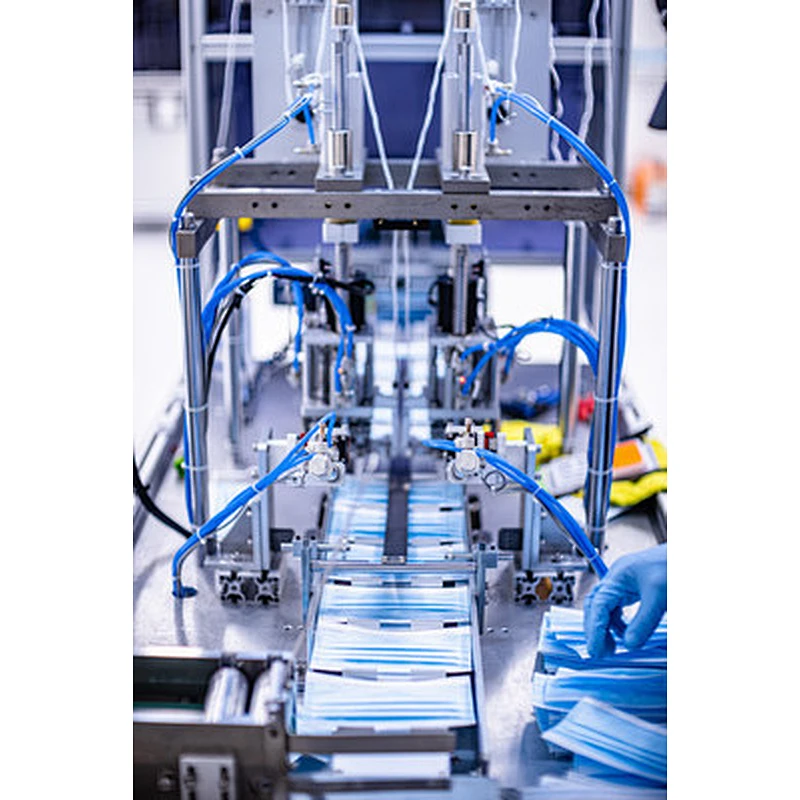

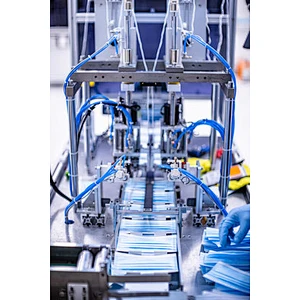

The whole roll of fabric is driven by rollers after unwinding, and the fabric is automatically folded and hemmed; Nose strip is cut to length and guide into the hemmed fabric. Two sides Ultrasonic welding and sealing edge of mask, and cutting and shaping by a cutter; Conveying the mask to the ear loop welding stations through an assembly line, and finally forming the mask by ultrasonic welding earloop; Mask is transported to the conveyor belt for collection when the processing of mask making ended.

Specification

Product name	Non-woven mask making machine
Power supply	220VAC±5 50HZ 9kw
Production speed	100-120pcs/min
Environmental requirements	10-35 ℃, general dust-free workshop Humidity 0-95% non-condensing
Air source	0.5～0.7MPa, 300L/min
Dimension	6500mm(L)×4500mm(W)×1900mm(H)
Weight	<2000kg
Certification	CE
Pass rate	>98%
Warranty	1 year
Mask materials	Non woven fabric, meltblown, nose wire, earloop wire
Lead time	7-15days

Advantages:

The whole machine adopts the aluminum alloy structure, which is more beautiful and sturdy.
High stability, with about 98% Product Qualification Ratio.
High-speed output lines, high output.
Fully automatic outer earloop spot welding machine colleagues make the mask sheet and the external ear spot welding part, it can save labour, once the non-woven fabric raw material is run out, the machine will stop automatically.
Using high-quality components like servo motor, ultrasonic, PLC control, etc. in the mask production line, to ensure the machine can last longer.
Test run a 24-hours working performance test, to ensure the machine’s stability before the final delivery.
High efficiency: fast production speed, can produce more than 100,000 units per day
