Non-Woven Medical Anti Dust 3 Ply Medical Mask Making Machine
Product description
StepAhead has developed a Mask Production Line which can produce high-quality surgical masks for helping people around the world to fight against the pandemic. Here is the introduce the main features of this fully automatic mask production machine.
The fully automatic surgical mask production line is the ideal manufacturing line for producing high-quality masks. The production line works fully automatically with the ultrasonic melting system used for the mask
Automatic feeding & Inserting system for nose-wires of the Mask
Three layers of non-woven fabric are automatically aligned and feed to the production line

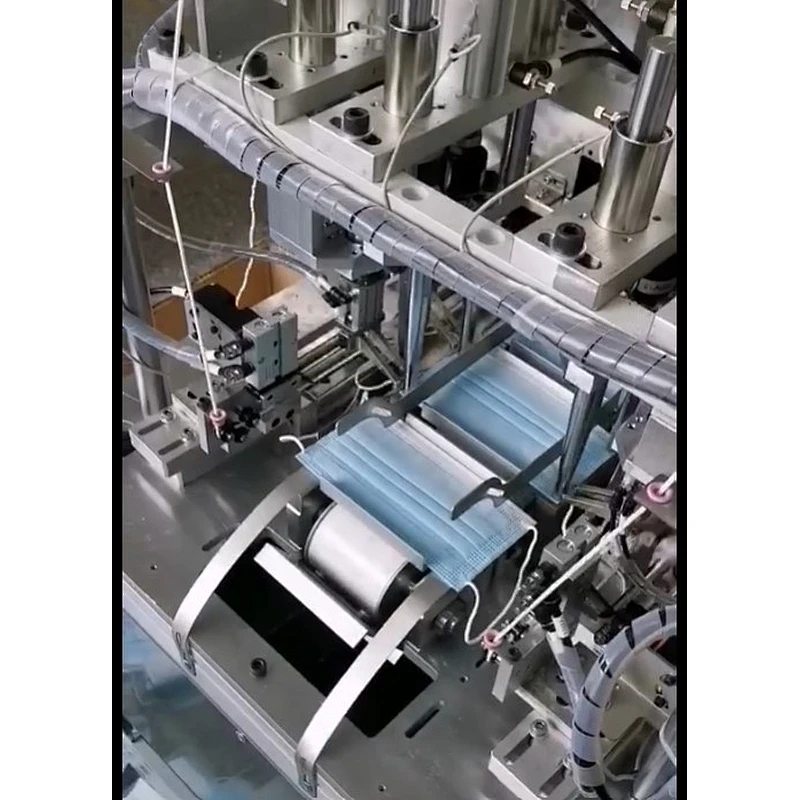

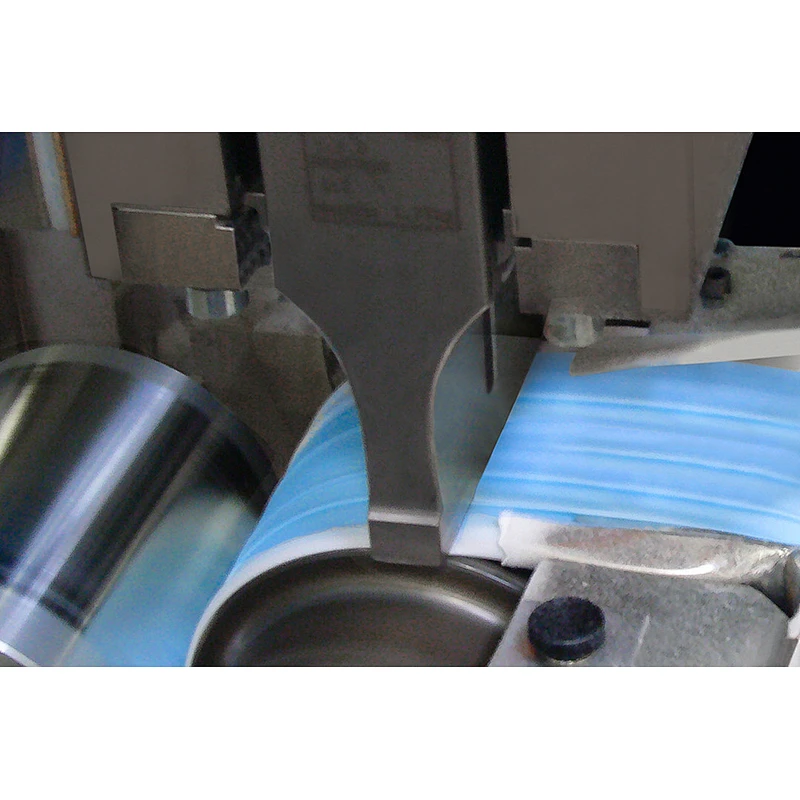

Nose wires and ear bands are automatically cut and welded by ultrasonic welding
Automatic counting and palletizing after welding the ear band.
High-capacity Surgical Face mask Production line capable of producing 110–150 pieces per minute
Easy installation and maintenance;
PLC control system and user-friendly control panel out human contact.

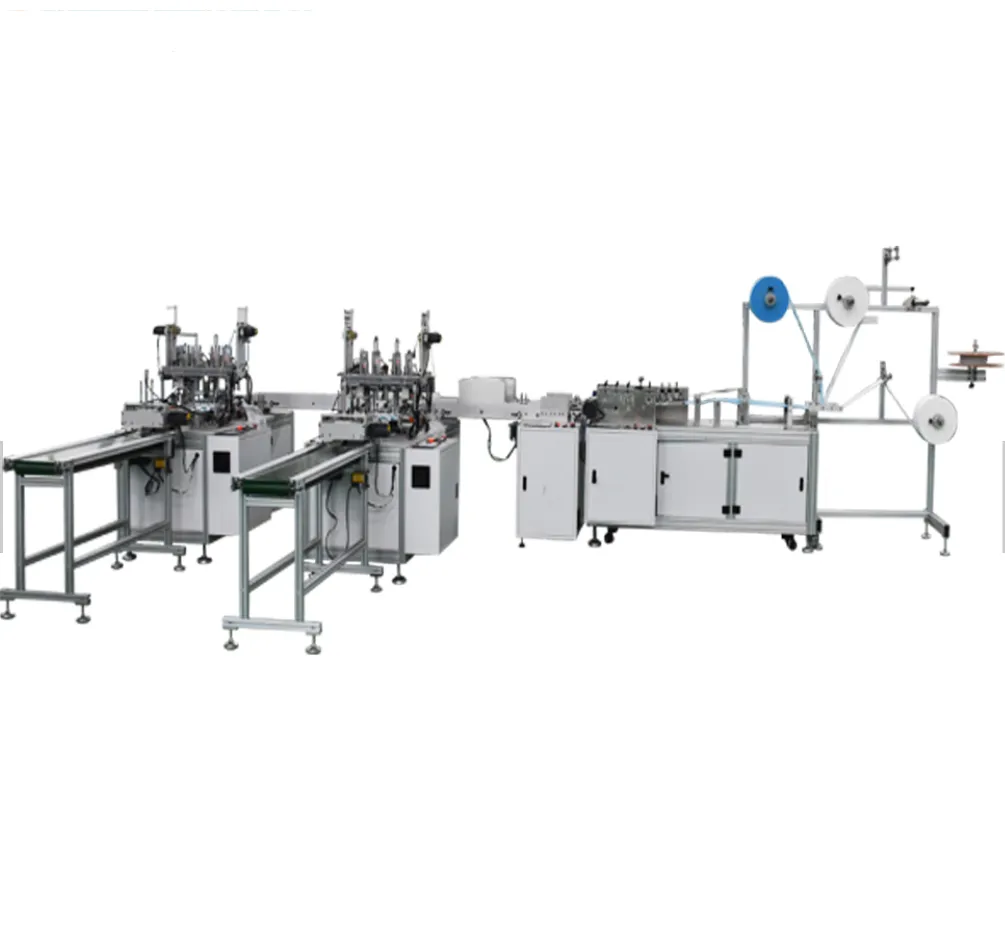

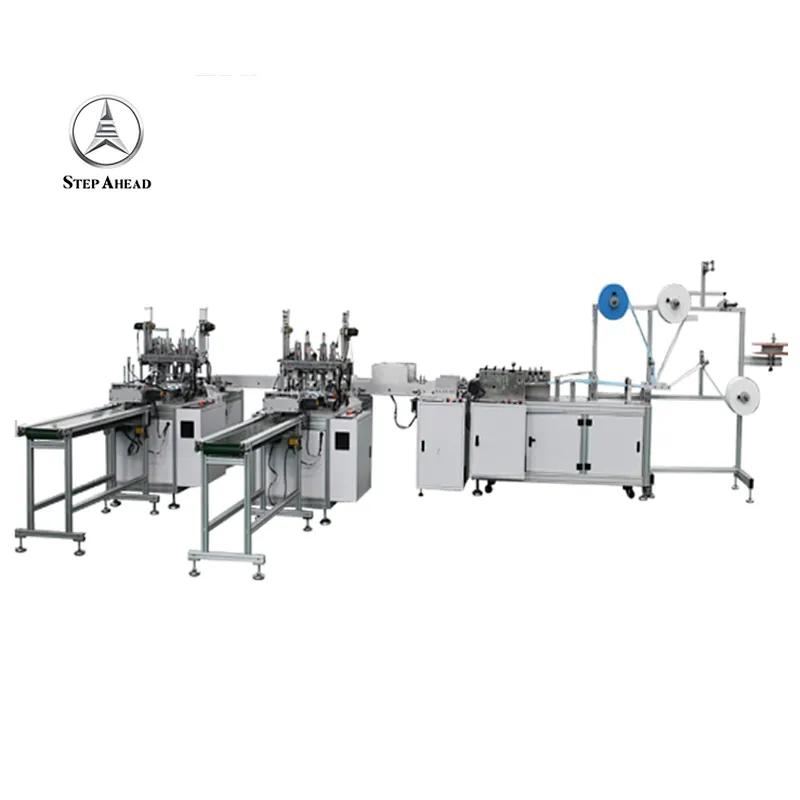

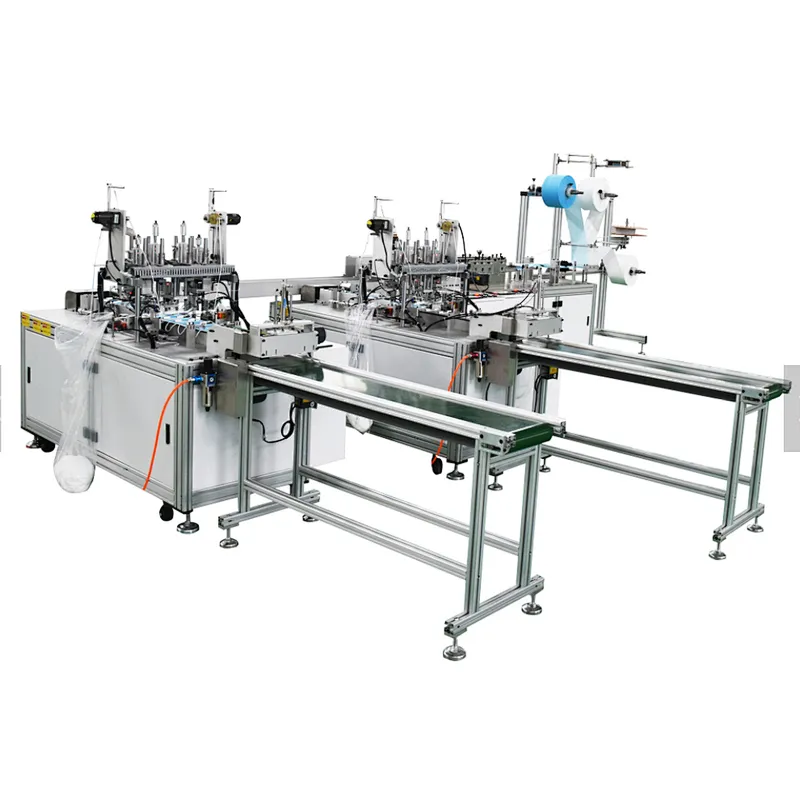

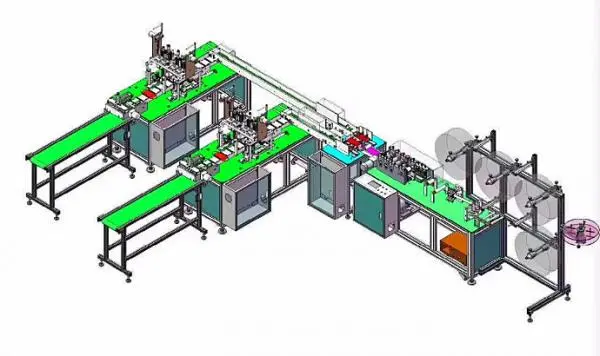

With one mask main body machine drives with two ear loop welding machines, the fully automatic high speed 1+1 flat medical mask machine work can produce mask in stably and productively. In standard mode and working condition, the machine can continuously run for 16 to 18 hours with a production speed can up to 130-180 pieces per minute.
Specification
Product name | 3ply Surgical Face Mask Making Machine |
Power supply | 220VAC±5 50HZ |
Production speed | 120-180pcs/min |
Mask Size | 17.5*9.5cm |
Environmental requirements | 10-35 ℃, general dust-free workshop Humidity 0-95% non-condensing |
Air source | 0.5～0.7 MPa, 300L/min |
Dimension | 6500mm(L)×4500mm(W)×1900mm(H) |
Weight | <2500kg |
Certification | CE |
Pass rate | >98% |
Warranty | 1 year |
MOQ | 1 set |
Advantages:
The whole machine adopts the aluminum alloy structure, which is more beautiful and sturdy.
High stability, with about 98% Product Qualification Ratio.
High-speed output lines, high output.
Fully automatic outer earloop spot welding machine colleagues make the mask sheet and the external ear spot welding part, it can save labor, once the non-woven fabric raw material is run out, the machine will stop automatically.
Using high-quality components like servo motor, ultrasonic, PLC control etc. in the mask production line, to ensure the machine can last longer.
Test run a 24-hours working performance test, to ensure the machine’s stability before the final delivery.
FAQ
Installation service
Due to the pandemic and the travel restriction of a different country, the filed installation service is not available now, but we will provide video and online install support.
The warranty time
A one-year warranty will be provided.
After-service within warranty.
For after-sales service, we will be provided: Video installation support, commissioning and training, free spare parts, and online support, video technical support
The parts have broken within warranty
Expect for consumables like ultrasound, blades, and scissors. We would provide the free spare parts within the warranty.
Machine operation problem
If you have any problems during the operation, you can contact our customer service at any time. Our engineers will provide the solution and online support according to your description.
logistic service
Logistic service is available in railway, sea cargo and air freight, to deliver the product to your destination in time and security. We have cooperated with many reliable third-party logistic service companies. We can provide customized logistic service, according to your equipment.
Machine labour require
For the auto mask machine, general needs at least one worker for one set of machines. The worker’s job is to refill in the raw materials, monitor the machine operation situation and pick up the final product.
